We’ve been working with a few customers recently, helping them create solutions that dynamically build documents based on user-defined selections within an application. So that’s why we’ve written this article all about building a proposal document with SharePoint and Power Automate.
This blog post is focused on the following simple scenario:
A SharePoint list is used to capture product proposal requests, and upon posting a request, a proposal document should be automatically created containing information for products selected within the request.
This solution uses four separate SharePoint lists detailed below:

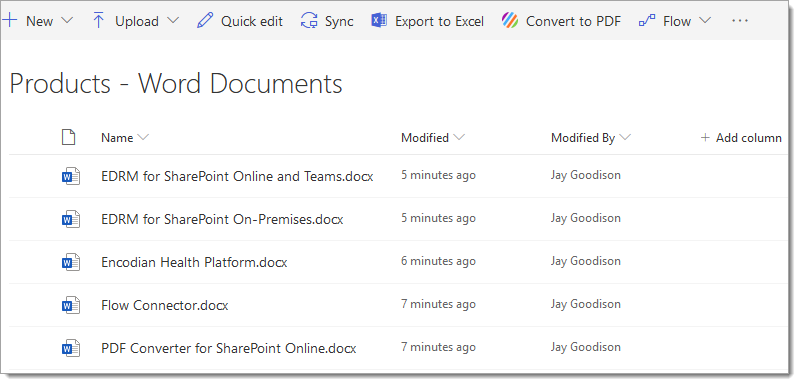

This SharePoint library stores a document for each specific product. No additional metadata has been added to the library.

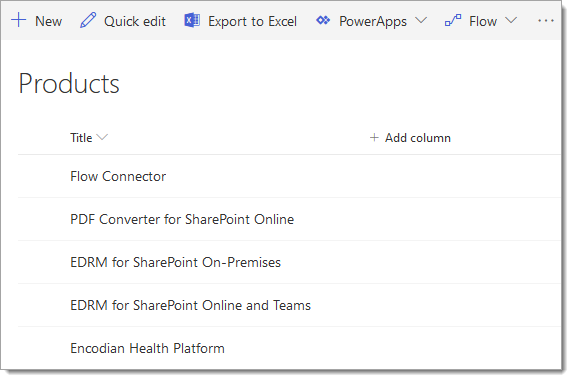

The products list contains a list of all the products. Each product should have a corresponding entry within the ‘Products – Word Documents‘ library and be named the same, excluding the file extension, for example:
NOTE: As you build this flow, you might think you don’t need the ‘Products’ list and that the ‘Products – Word Documents’ library could be used in isolation… you’d be correct! However, the separation degree will make it much easier to scale and add additional capability in future, so we recommend separating.

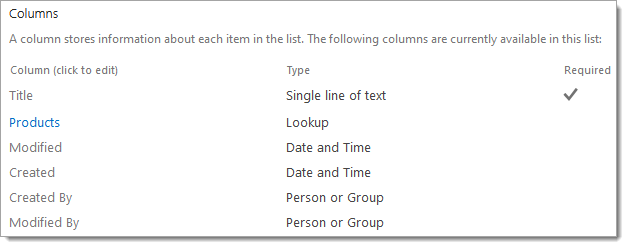

This SharePoint list is used to capture the proposal requests and is configured as follows:

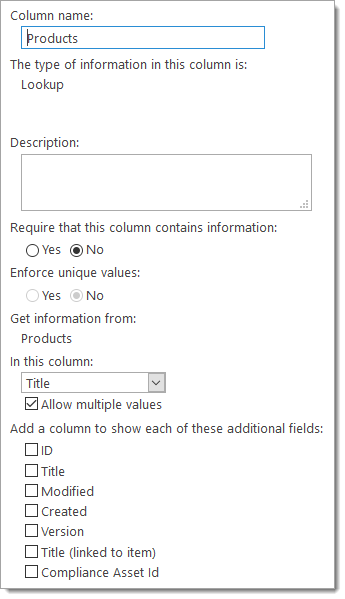

A single Lookup column named ‘Products‘ associated with the ‘Products‘ list has been added with the following configuration:

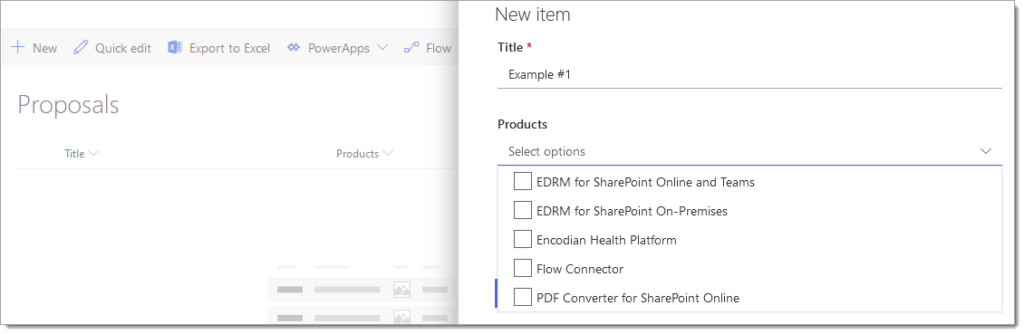

Upon data entry, it should look as follows:
1. Create a new Flow using the ‘Automated — from blank‘ option
2. Enter a name for the Flow, select the ‘When an item is created‘ SharePoint trigger action, and click ‘Create.‘

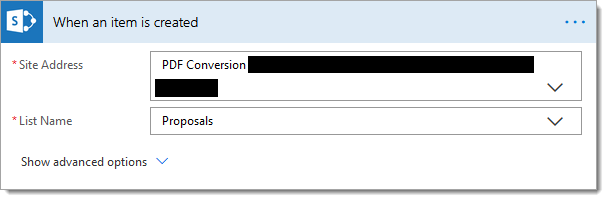

3. Configure the ‘When an item is created‘ SharePoint trigger action
3.a. Site Address: Enter the location of the SharePoint site where the configured lists are held.
3.b. List Name: Select the ‘Proposals‘ list

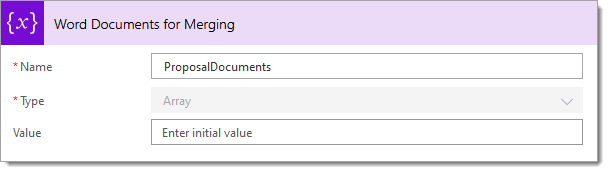

4. Add a ‘Initialize variable‘ action

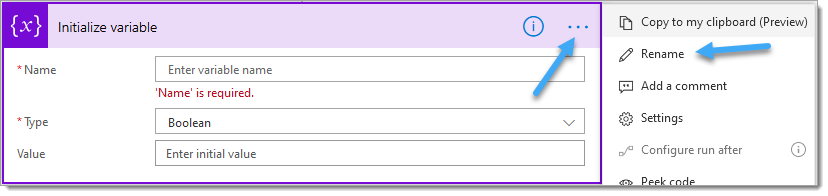

4.a. (Optional): Rename the action to ‘Word Documents for Merging.‘
4.b. Name: Set to ‘ProposalDocuments‘
4.c. Type: Set to ‘Array‘

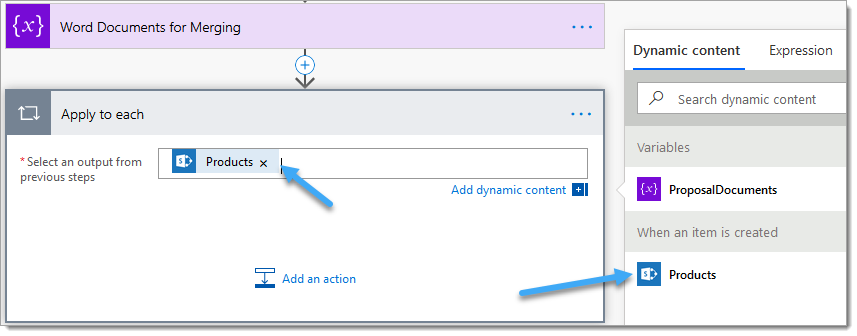

5. Add an ‘Apply to each‘ control action
5.a. Select an output from previous steps: Select the ‘Products‘ property from the ‘When an item is created‘ SharePoint trigger action.
5. Inside the ‘Apply to each‘ action; Add a ‘Get file content using path‘ SharePoint action
5.a. Site Address: Enter the location of the SharePoint site where the configured lists are held.

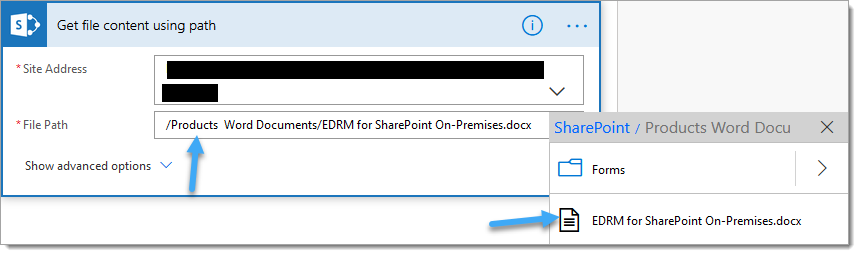

5.b. File Path: Manually select any file from the ‘Products – Word Documents‘ library

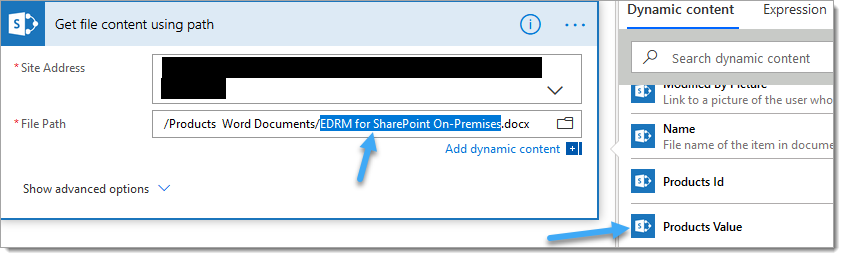

5.c. File Path: Select the filename omitting the extension, and then select the ‘Products Value‘ property from the ‘When an item is created‘ SharePoint trigger action
5.d. File Path: The final configured value should appear as follows

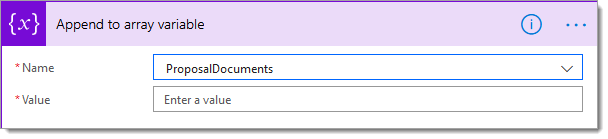

6. Add an ‘Append to array variable‘ action
6.a. Name: Select the previously created ‘ProposalDocuments‘ variable

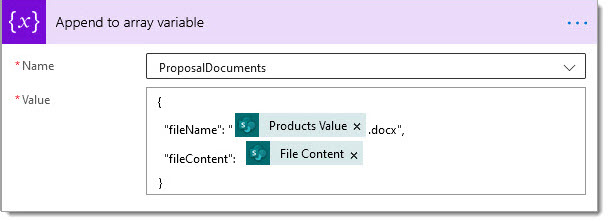

6.c. Value: Copy and paste the following value into the ‘Value‘ field
{
"fileName": "@{items('Apply_to_each')?['Value']}.docx",
"fileContent": @{body('Get_file_content_using_path')}
}
NOTE: If you have renamed either the trigger action or the ‘Apply to each action, you need to modify the copied value to reference the updated action names. If you experience issues executing the merge action, please review this article.

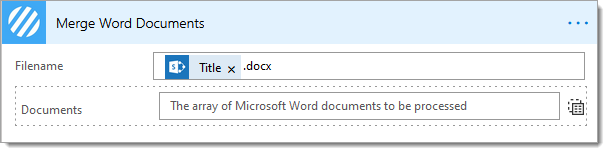

7. Underneath the ‘Apply to each‘ action; Add a ‘Merge Word Documents‘ Encodian action

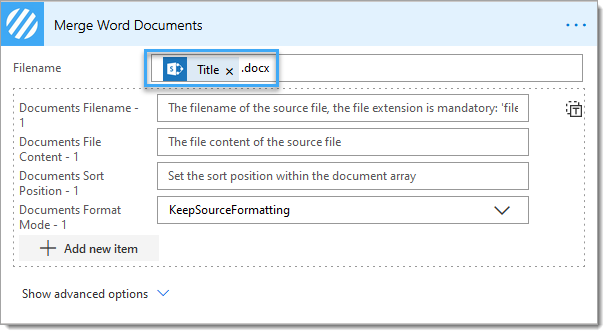

7.a. Filename: Set the name of the proposal document which will be created. For this example, we have used the ‘Title‘ property from the ‘When an item is created‘ SharePoint trigger action concatenated with ‘.docx‘.

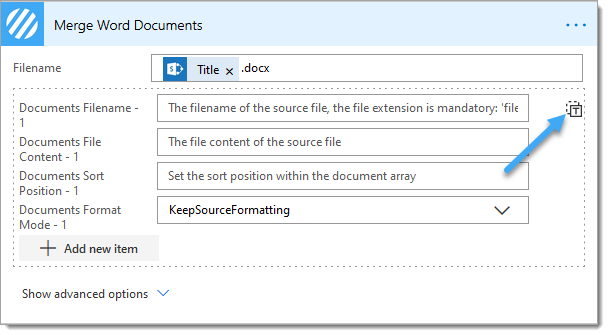

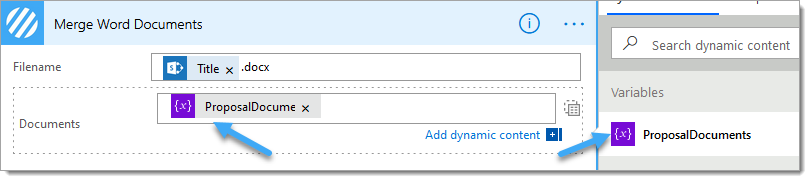

7.b. Click the ‘Switch to input entire array icon.‘
7.c. Remove any existing text within the ‘Documents‘ field
7.d. Documents: Select the ‘ProposalDocuments‘ variable

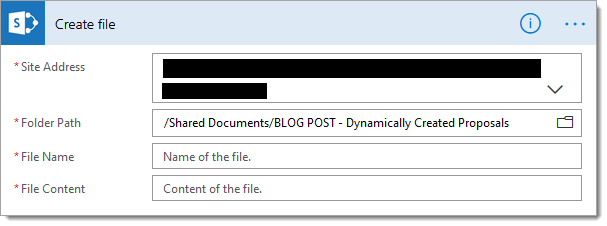

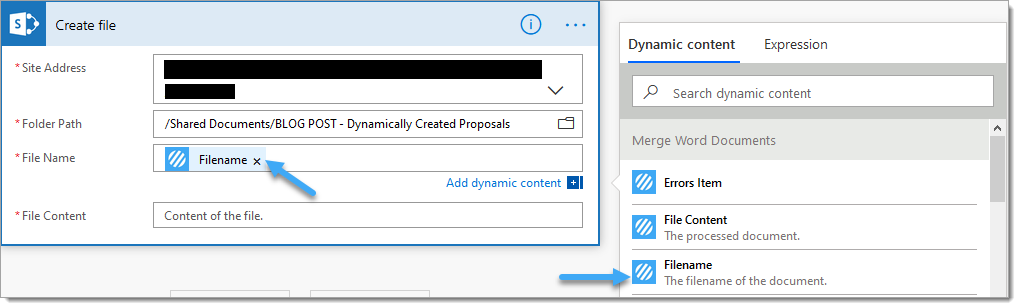

8. Add a ‘Create file‘ SharePoint action
8.a. Site Address: Set to the value of the SharePoint site, which contains the target document library
8.b. Folder Path: Set to the value of the target SharePoint folder

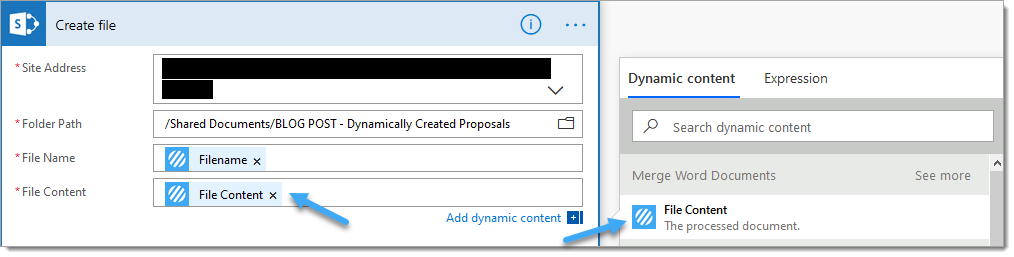

8.c. File Name: Select the ‘Filename‘ property from the ‘Merge Word Documents‘ Encodian action
8.d. File Content: Select the ‘File Content‘ property from the ‘Merge Word Documents‘ Encodian action

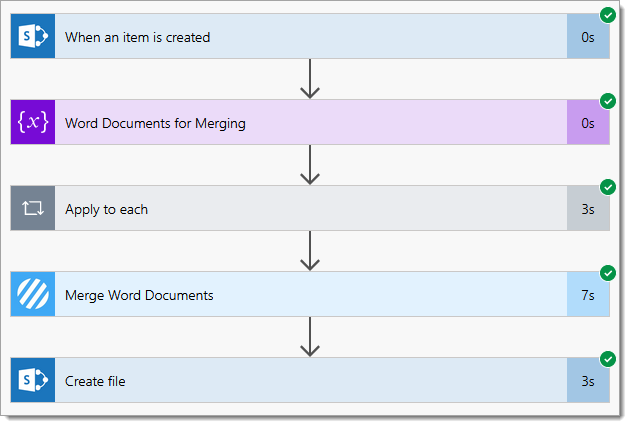

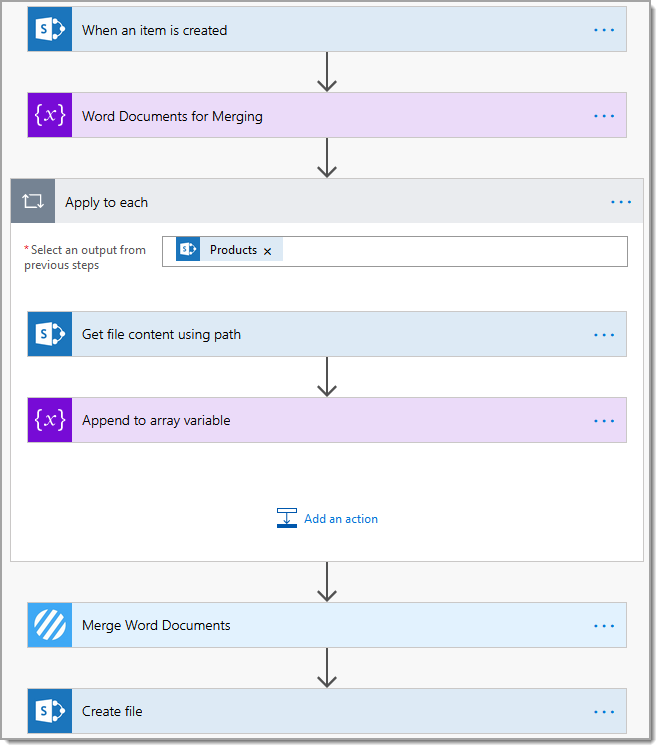

9. The completed flow should follow this construct:
10. Now, let’s test the flow!

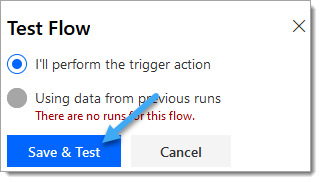

11. Select ‘I’ll perform the trigger action‘, click ‘Save & Test‘

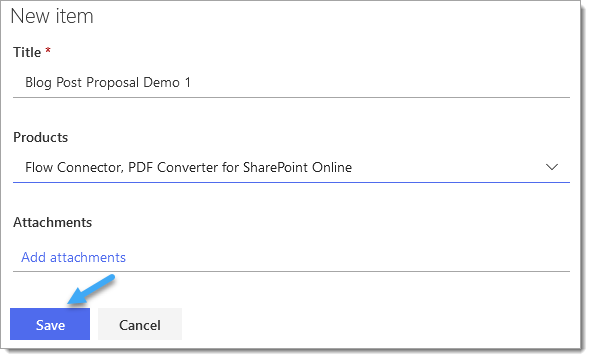

12. Go to SharePoint and add a new entry into the ‘Proposals‘ list
13. Verify the Flow has been executed successfully

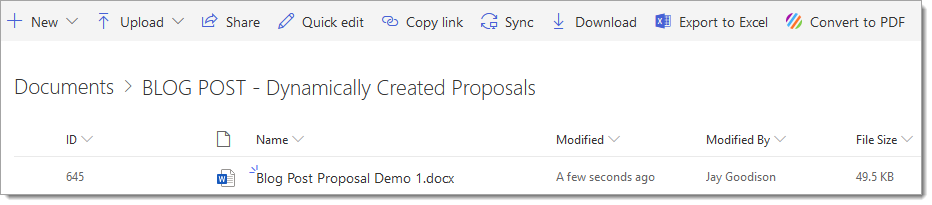

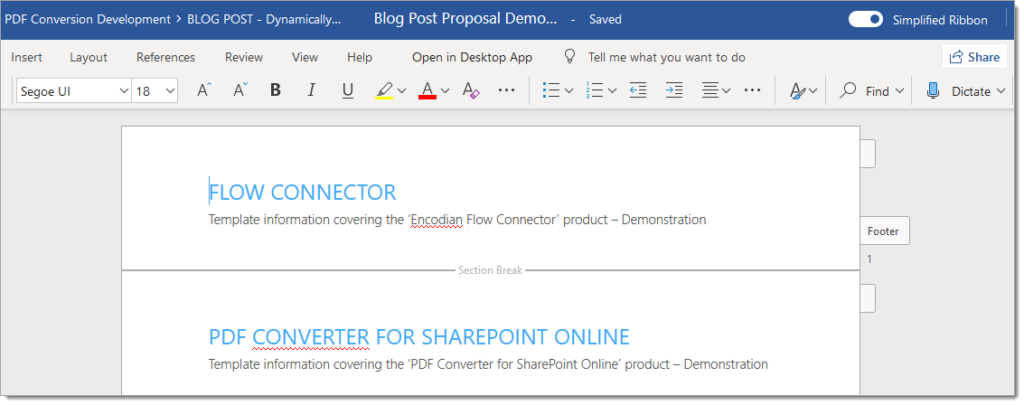

14. … You have created the merged document containing the correct documents.
Hopefully, this post provides an excellent basic solution you can build upon to create solutions that dynamically generate documents, like building a proposal document based on user-defined input.
We hope you’ve found this guide useful, and as ever, please share any feedback or comments – all are welcome!
